Partial Discharge Measurement On Site (Detect and Locate)

Partial Discharge Measurement On Site (Detect/Locate)

PDtect®2 Portable	PDtect®4 Surveyor	PDtect®4 Explorer
2 Antenna backpack.	4 Antenna vehicle portable.	4 Antenna vehicle permanent.
PD detection & location.	PD detection & location.	PD detection & location.
Enables detection & location of PD activity in assets by service routine inspections or safety checks.	Enables detection & location of PD activity in assets by service routine inspections or safety checks.	Enables detection & location of PD activity in assets by service routine inspections or safety checks.
Portable system in backpack. Self-contained compact solution allows accurate location of PD sources by walk through inspection of the high voltage yard.	Portable system for temporary attachment to roof rails of a vehicle, provided in sturdy cases suitable for transport and shipping. Not suited for long distance travel while fixed to the roof rails.	Portable system for permanent attachment to roof rails of a dedicated vehicle, robust design to endure exposure to weather and long distance travel from site to site on bad roads.

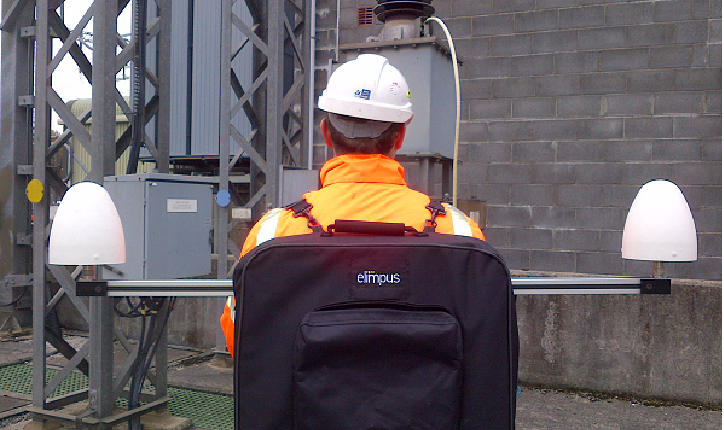

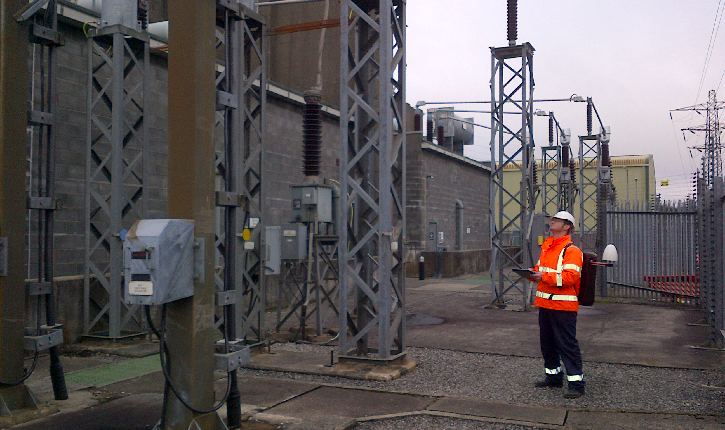

PDtect®2 Portable
The PDtect®2 Portable allows ultimate flexibility in accurate detection of Partial Discharge from numerous equipment types in AIS substations. Its new, compact, lightweight and clamshell construction can be easily carried and transported to site. It is non-intrusive and ready to use with spare battery available.

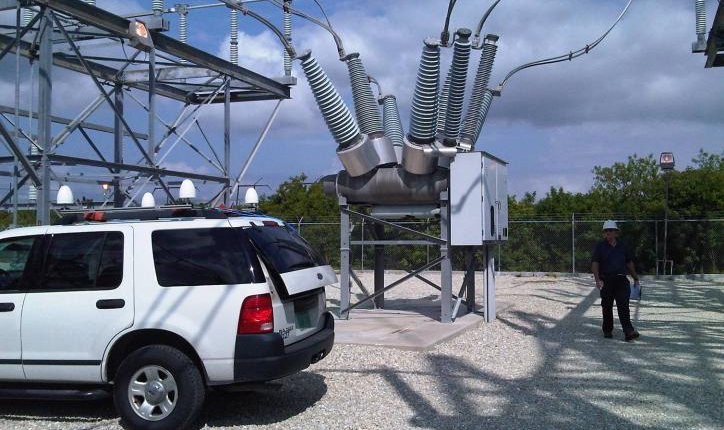

PDtect®4 Surveyor
The PDtect®4 Surveyor is easily mounted on existing roof rails, and makes for easy storage and flexibility in vehicle choice, depending on availability. It non-intrusively locates partial discharge from numerous equipment types. There is no requirement to connect the vehicle within the substation

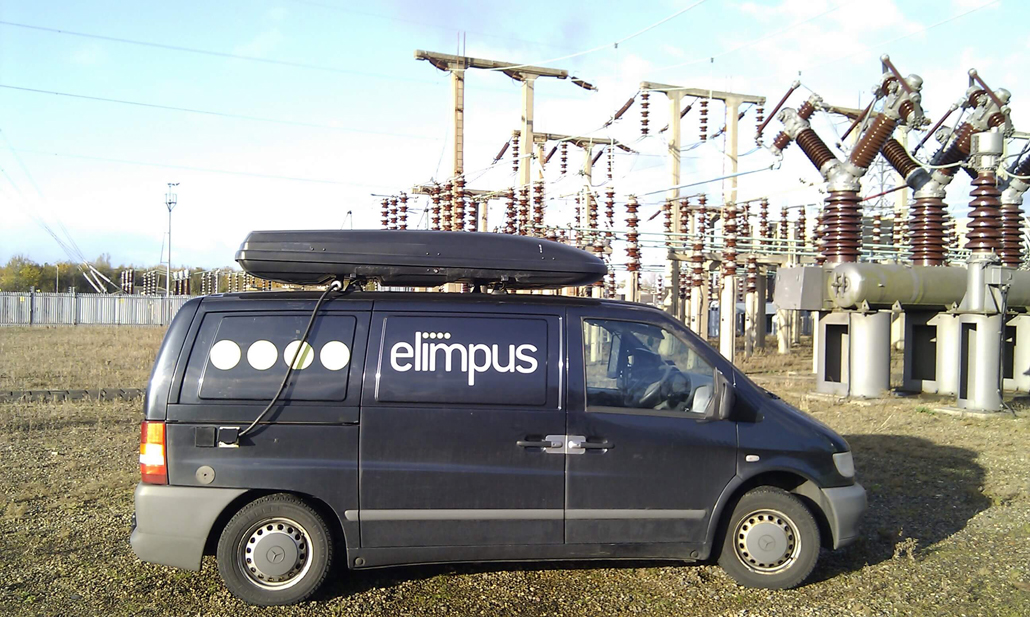

PDtect®4 Explorer
The PDtect®4 Explorer facilitates quick and efficient movement to various substations. It was used in the Elimpus challenge to survey 5 substations in one day, in Ireland. Detecting PD across a wide variety of high voltage equipment in AIS, it is non-intrusive and there is no requirement to connect the vehicle within the substation.
